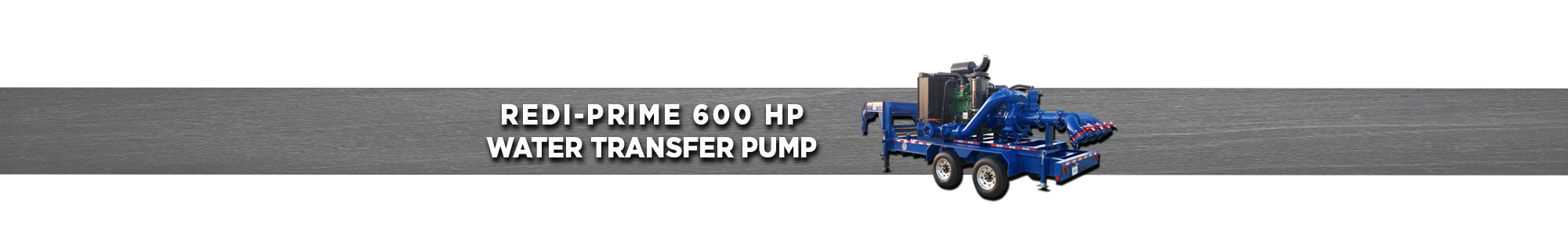

Redi-Prime 600HP
Water Transfer Pump

Redi-Prime 600HP Water Transfer Pump
REDI-PRIME 600 HP WATER TRANSFER PUMP SPECIFICATIONS
  • 10X8 Pump Redi-Prime vacuum assisted with Run Dry mechanical seal
  • John Deere 600HP tier III engine,
  • Large 16000# capacity Dual Axle Trailer
  • Dual Torsion ride axles with 17.5” 16ply rated tires
  • 210gal fuel cell with Fuel cap risers
  • Electric brakes, 2 back leveling jacks,
  • 2 5/16 Coupler with 5 position channel adjustment
  • Check Valve in diaphragm prime line, 1/2” ball valve on centrifugal pump for draining
  • Quad 8” Manifold Suction Dual 8” Manifold Discharge

10X8 8NHTA Cornell Redi-Prime
  • 8NHTA-EM18DB-1
  • All iron construction
  • Horizontal engine mount
  • SAE 1 bell housing
  • 14” drive coupling
  • Tungsten carbide vs. silicon carbide cycloseal design
  • Run-dry reservoir and fittings

600HP Tier III John Deer Power Unit
  • Model 6135H485-600
  • In-Line 6 Cylinder, 4-Cycle Turbocharged
  • Electronic Fuel System
  • Liquid Cooled
  • 600HP/448kW 2100RPM
  • Murphy Digital Instrumentation
  • 2 Stage Air Cleaner/Core and Fan Guards
  • Engine Mounted ECU with de-rates and shut downs
